Understanding Circulating Currents

Electric motor bearings fail for a variety of reasons but the two most common reasons for electrical failure are circulating and common mode currents. Circulating currents are found in all motors. The severity of the problem and therefore the risk to the motor bearings is proportional to the motor frame size — meaning the larger the motor frame the greater the risk. In this article, we will take a look at circulating currents, including the cause, their impact on motor bearings, and effective strategies to mitigate damage.

What is Circulating Current?

Circulating currents are flowing electrical currents that occur in electric motors as a result of imbalances in the motor and the voltage it creates between the stator and rotor iron. These imbalances create an asymmetrical magnetic field in the motor. The motor’s  asymmetry is not related to the motor drive or method used to drive the motor but rather from imbalanced windings, the differences in the iron core, and air gaps.

What Causes Circulating Currents?

Each motor winding has slight variations as compared to the other windings. These variations are in the wire itself, the winding method, wire insulation, etc. – no two windings are exactly alike. The same is true with the iron core, typically made from a stack of metal plates, one plate stacked alongside the other. Each plate is slightly different from the other and like the windings, no two are exactly the same. These variations along with slight discrepancies in the motor’s air gap as the rotor turns create an asymmetrical magnetic field in the motor, causing circulating currents to occur.

How Do Circulating Currents Affect Motor Bearings?

The circulating current passes through and damages the bearings as they circulate through the motor (Figure 1 – shown in yellow). Manufacturers take careful consideration during design and manufacturing to reduce the asymmetry, but that level of quality comes at a cost many are not willing to absorb.All motors experience this imbalance but only on large frame motors is the problem extreme enough to cause bearing failure.

Figure 1 – circulating currents within a motor frame

Mitigation Techniques for Circulating Currents

Naturally, large frame motors inherit more imbalances which leads to more circulating current. The rule of thumb is any motor frame over 100hp should be built with insulated bearings. It is common to use an insulated bearing to break the ‘circuit’ (shown below in blue). By adding only one insulated bearing to the circuit, the circulating current will be eliminated and the problem is corrected. Insulating either bearing will work but is typically only added to the opposite drive end (ODE) of the motor because it is less expensive and easier to replace.

Figure 2 – circulating currents are eliminated due to an insulated bearing

Differentiating Circulating Currents from Common Mode Current

Circulating currents are very different from common-mode current. Circulating currents result from imbalances in the motor’s construction, while common-mode currents are created by the pulse width modulated (PWM) signal used to drive the motor from a variable frequency drive (VFD). Insulating one bearing will eliminate circulating current but it won’t address common-mode currents. Since both types of currents can damage motor bearings, it’s important to take precautionary measures.

Replacing both the drive end (DE) and opposite drive end (ODE) bearings with (expensive) insulated bearings will prevent damage to the motor bearings from either source but this typically only diverts the problem to downstream equipment like gearbox gears, load bearings, instrumentation, etc. Installing shaft grounding for common-mode discharges on the same end as the insulated bearing will reestablish the ‘circuit’ and will bypass the insulated bearing through the grounding device, the current will be forced to flow through the uninsulated bearing. For this reason, adding a grounding device to the same end of the motor as the insulated bearing is NOT recommended.

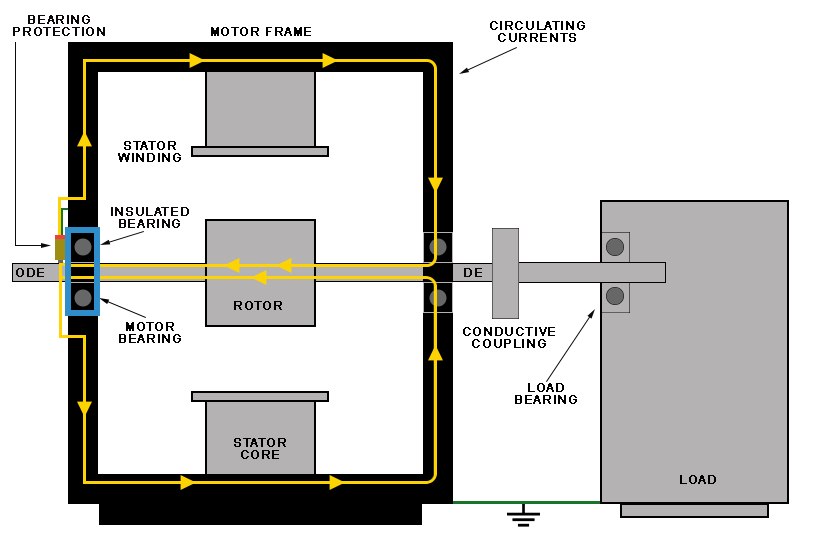

Figure 3 – Bearing Protection Kit™ installed on the same end as the insulated bearing reestablishes the circulating current

Best Practices to Avoid Bearing Failure in Electric Motors

Circulating currents are directly related to the frame size and the quality of construction of the electric motor. Industry-standard recommends precaution be taken for motors over 100HP to prevent electrical erosion of the motor bearings due to electrical discharges.

When common mode is also a concern, for motors driven from a variable frequency drive (VFD), it is also recommended to add shaft grounding. When adding a shaft grounding device like our Bearing Protection Kit (BPK) for common-mode current in addition to the insulated bearing to prevent circulating current, take caution to ensure the shaft grounding kit is installed on the opposite side from the insulated bearing.

For large frame motors driven from a VFD, it is recommended to insulate the ODE bearing to prevent circulating current and a Bearing Protection Kit (BPK) to the DE to prevent common-mode current. This will protect the motor from damaging electrical discharges from both circulating current and common mode current.

Figure 4 – Bearing Protection Kit™ installed on the opposite end of the insulated bearing, both circulating and common mode currents have been mitigated
