Helwig Carbon’s Bearing Protector:

The Industry’s Best Shaft Grounding Solution

Prevent Bearing Failure

Premature bearing failure is a major cause of motor downtime and costly repairs. Helwig Carbon uses proven silver graphite brush technology in a variety of bearing protection kits for motor shaft grounding. Our kits effectively divert induced electrical currents away from the bearings, protecting them from damage and failure. What’s more, our bearing protection kits are economical, easy to install, and offer the industry’s best shaft grounding performance.

THE CAUSES OF BEARING DAMAGE

Variable frequency drives (VFD) used on AC, and DC motors produce induced electrical currents on the motor shaft. This current seeks the path of least resistance to ground, which is typically through the motor bearings. When the current passes through the bearings, electrical arcs take place leading to fluting, pitting, and bearing damage. The fluted or damaged bearing surface causes noise, vibration, and premature bearing failure.

TYPICAL BPK APPLICATIONS: Motors with VFDs, HVACR, Pumps, Fans, and Blowers.

Made in USA logo, showing that our bearing protection kits are crafted in the USA, static grounding bearing
RU US UL approved logo, showing our bearing protection kit

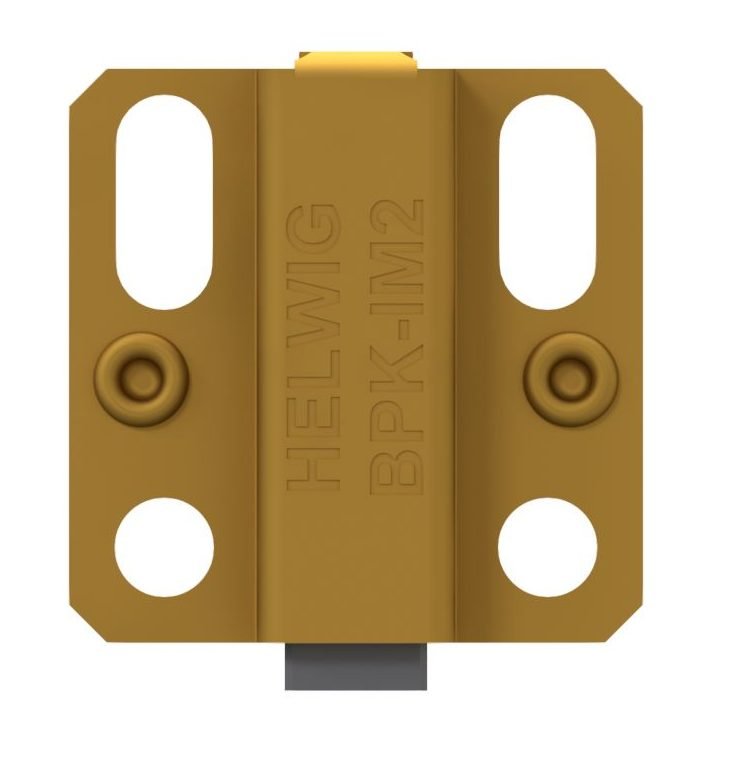

A rendering of our im2-2 product, motor bearing protection kit
*Enlarged to show detail

IM2

  • Our smallest BPK has a small, durable brass holder containing a compression spring with a proprietary silver graphite brush
  • Ideal for small size motors
  • Typical Applications: HVAC, Small Pumps, Fans, Internal Mounts
  • Dimensions: .241” x .75” x .75” inch (6.1 x 19 x 19mm)
  • For special applications please contact us (800)-962-4851

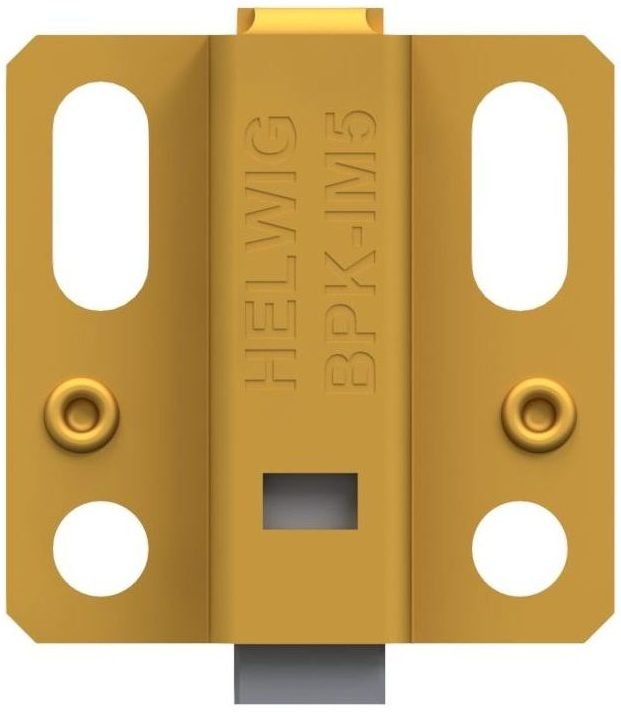

A rendering of our im5-2 product, bearing protection, ground rings
*Enlarged to show detail

IM5

  • Like the IM2, the IM5 has a slightly larger brass holder containing a compression spring with a proprietary silver graphite brush
  • Ideal for small/medium size motors
  • Typical Applications: HVAC, Small-Medium size Pumps, Fans, Internal Mounts
  • Dimensions: .325″ x 1.0″ x 1.0″ inch (8.26 x 25.4 x 2.54mm)
  • For special applications please contact us (800)-962-4851

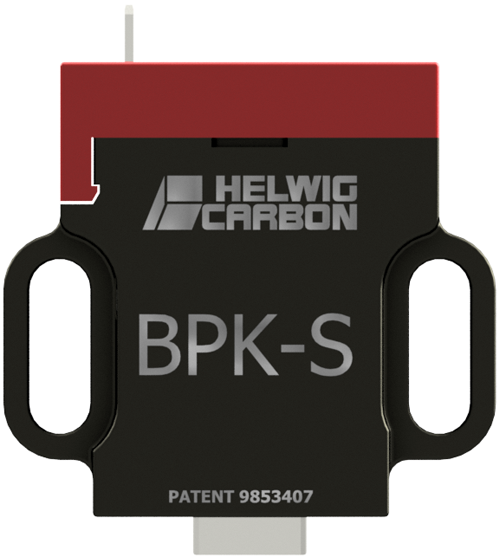

bpk-s, prevents bearing failure, ground rings
*Enlarged to show detail

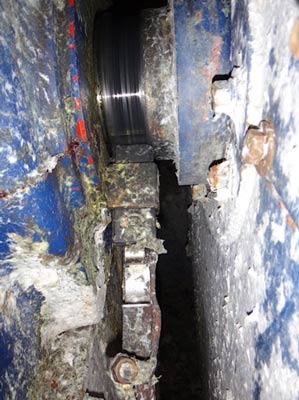

S

  • Our Patented BPK-S uses a sealed Teflon holder containing a constant force spring with a proprietary silver graphite brush
  • Ideal for contaminated environments and any size motor
  • Typical Applications: Paper Industry, Foodservice, any contaminated environments
  • Dimensions: .45” x 1.63” x 1.50” inch (11.4 x 41.4 x 38mm)
  • For special applications please contact us (800)-962-4851

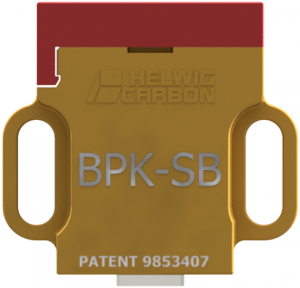

bpk-sb rendering, preventing bearing failure with our shaft grounding systems
*Enlarged to show detail

SB

  • Our Patented BPK-SB uses a sealed brass holder containing a constant force spring with a proprietary silver graphite brush
  • Ideal for contaminated environments and any size motors
  • Typical Applications: Motor OEMS, Paper Industry, any contaminated environments
  • Dimensions: .45” x 1.59” x 1.52” inch (11.4 x 41.3 x 38.1mm)
  • For special applications please contact us (800)-962-4851

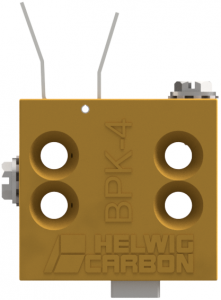

our bpk-4 render of one of our products, used for carbon bearing protection, grounding ring
*Enlarged to show detail

4

  • The Original Bearing Protection Kit – protecting bearings for over 25 years – uses a durable brass holder to house a constant force spring and a proprietary silver graphite brush
  • Ideal for medium-sized motors and harsh environments
  • Typical Applications: Manufacturing, Medical, Steel, Elevator Industries
  • Dimensions: .5” x 1.5” x 1.38” inch (12.7 x 38 x 35mm)
  • For special applications please contact us (800)-962-4851
Helwig Carbon bearing protector - BPK AM, grounding rings for electric motors
*Enlarged to show detail

AM

  • Our largest BPK has a heavy-duty brass holder containing a durable constant force spring and a proprietary silver graphite brush with a red top to reduce vibration
  • Ideal for large motors and shafts greater than 4”
  • Typical Applications: Large Industrial, Marine and Military Applications
  • Dimensions: .63” x 2.09” x 1.26” inch (16 x 53 x 32mm)
  • For special applications please contact us (800)-962-4851

YOUR BEST CHOICE FOR DEPENDABLE BEARING PROTECTION

Effective shaft earthing and bearing protection from Helwig Carbon BPKs will divert the current from the motor shaft and provide the lowest resistance path to ground in an economical product. The result is the lowest shaft voltage and maximum discharge to ground through the kit rather than through the bearings or other components.

Major OEMs choose our solution as their preferred method to protect motor bearings. Unlike other options, this sliding electrical contact technology uses a proprietary silver graphite material that provides superior voltage mitigation. Advantages include:

  • Longevity: will typically outlast the unit it is installed on
  • Most effective shaft grounding technology, proven to minimize damaging induced shaft currents
  • Provides lowest resistance path to ground
  • Low to high current carrying capacity
  • Stock kits fit most motors and multiple shaft sizes
  • Easy to install and maintain
  • Numerous options for a wide variety of conditions
  • Internal mount options avoid exposure to outside and contaminated environments
  • Custom mounting brackets are available by contacting us at carboncrew@helwigcarbon.com or (414)-354-2411

Bearing Protection Kits™ mitigates shaft voltage and other electrical noise. The following oscilloscope screenshots compare induced shaft voltage with our BPK-4 vs. a carbon-fiber ring. Lower voltage values is more effective for bearing protection. Peak-to-peak voltage for Helwig’s solution is more than 5X lower in resistance than the carbon-fiber ring, which significantly reduces the risk of induced shaft currents flowing through the bearings.

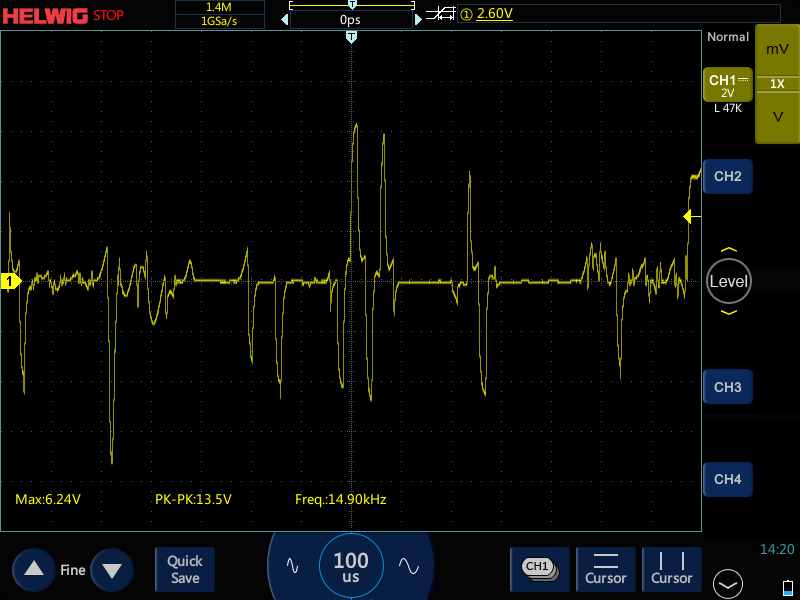

An unprotected motor scope image, not using our bearing protection ring

Unprotected Motor Shaft

scope with ring for carbon bearing protection, ground rings and our bearing protection ring

Motor Shaft with Carbon-Fiber Ring

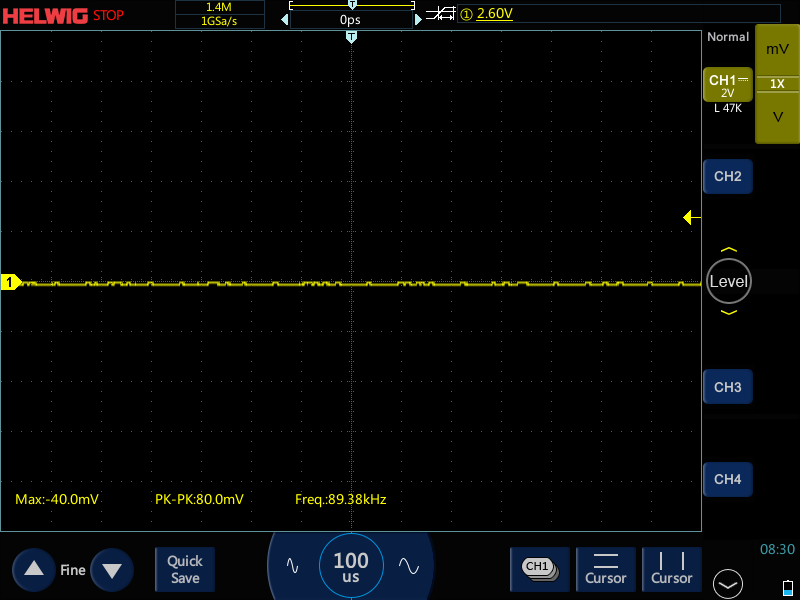

bpk scope carbon bearing protection kits, grounding rings for electric motors, ground rings

Motor Shaft with BPK-4

These results were measured through our Patented BPK-Probe™ and conclude that a Helwig BPK effectively ensures against the risk of bearing failure or damage, therefore improving the life of the motor.

Oscilloscope screenshots were taken in a control testing environment, using our Patented BPK-Probe™. The test was conducted on a 10HP Nidec motor with the following specifications: 460VAC, 1765 RPM, and driven by an Emerson VFD at 52Hz
less than one, VFD Bearing Damage

Typically reduces shaft voltage to less than 1 volt up to greater than 1MHz

an icon for our tough icon, ground rings that prevent bearing failure

Tough brush holder design for challenging environments

no carbon, ground rings, VFD Bearing Damage and bearing failure

Only highly conductive silver graphite brushes in our BPKs

return on investment from our bearing protector icon, ground rings, shaft grounding systems

Increased motor performance, less maintenance

our longevity icon, grounding rings for electric motors, bearing protector for bearing failure

Our BPKs typically last around 10 years*

*subject to motor specifications, product selection, and application environment

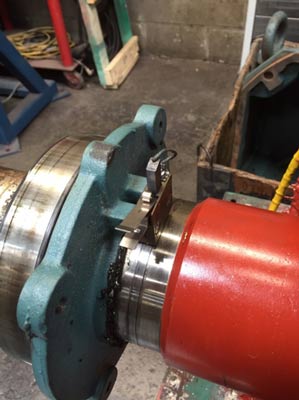

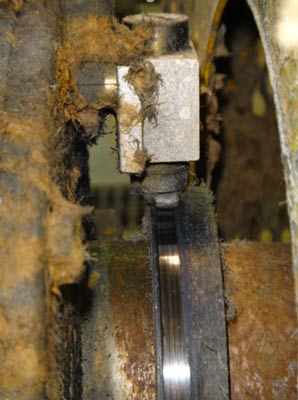

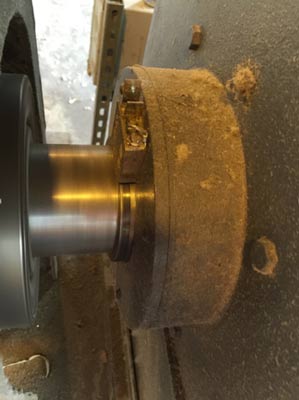

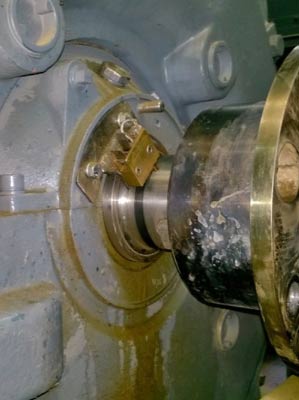

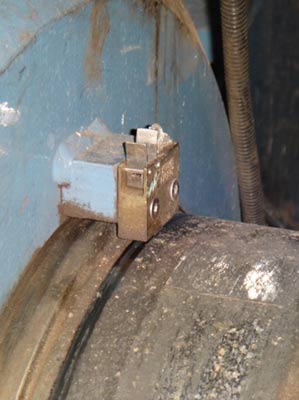

Helwig Carbon bearing protection kits (BPK) fit a variety of motor shafts, offer several mounting options, and are easy to install and maintain. BPK will deliver many years of superior performance in shaft grounding, typically outlasting the unit they’re installed on.

For motor shafts over 6 inches please call Helwig Carbon (800)-962-4851

Our BPK selection guide image, grounding rings for electric motors, VFD Bearing Damage

WEG Motors with Bearing Protection Kits™

Helwig Carbon Bearing Protection Kits (BPKs) are now available on WEG motors. We’ve partnered with one of the world’s most respected motor brands to offer shaft grounding pre-installed on new motors!

A span of 6 bpk brushes on our silver graphite brushes page, example of shaft grounding solutions from Helwig Carbon

Why Motor OEMs are switching to Helwig’s Bearing Protection Kits™

Helwig Carbon has been supplying OEM motor manufacturers with shaft grounding solutions since the mid-1990s. Since that time, the use of VFDs to control electric motors has vastly increased, thus increasing the need for shaft grounding and the demand for our after-market Bearing Protection Kits™ (BPKs).

Understanding Circulating Currents

Electric motor bearings fail for a variety of reasons but the two most common reasons for electrical failure are circulating and common mode currents. Circulating currents are found in all motors. The severity of the problem and therefore the risk to the motor bearings is

BPK Probe ROI Blog, the BPK-Probe™ is an easy to use instrument specifically designed to measure the risk for damage to motor bearings, gearboxes, or other devices.

Achieving an ROI with the BPK-Probe™

Problem Overview: The Patent Pending BPK-Probe™ is an easy to use instrument specifically designed to measure the risk for damage to motor bearings, gearboxes, or other devices that are susceptible to electrical discharges, also known as common-mode. These discharges are typically the result of

Even the strongest Juggernaut needs a little help from a small silver graphite brush.

Even the strongest Juggernaut needs a little help from a small silver graphite brush.

Even the strongest Juggernaut needs a little help from a small silver graphite brush. The Century® JuggerNaut® condenser fan motor from Regal Beloit® comes standard with a BPK-IM2, our smallest shaft grounding option.  The IM2 will provide many years of protection against harmful common mode currents passing through the motor bearings. These motors are designed as a drop-in replacement for existing models, to work with VFDs, and withstand high operating temperatures.

BPK group, used for image in blog outlining New Application Brief and VFD Bearing Damage

New Application Brief: Bearing Protection Kits in Universities

Check out our newest application brief: “Bearing Protection Kits in Universities”.  This application brief covers the usage of Helwig’s Bearing Protection Kits at the University of Nebraska-Lincoln. UNL was looking for reliable bearing protection after they experienced motor failure due to VFD bearing damage, despite using a popular competitor’s solution. They tested our BPK-4 shaft grounding solution and were convinced that our unit would protect their motors from harmful shaft discharge. UNL now has Helwig’s BPK solution specified into their requirements for any motors controlled by VFDs, thus preventing further VFD bearing damage.
