Helwig is able to design & manufacture a wide array of carbon brush holder assemblies in a devoted production area in our Milwaukee, WI headquarters. Our holders are engineered with the customer’s brush and application in mind to provide the best holder solution for critical applications.

Custom Engineered for High-Performance

  • Expertly designed for maximum reliability with world-class quality
  • Enhanced designs allow for longer brushes increasing brush life and decreasing downtime
  • Improved brass holder for durability in harsh environments
  • Tightly maintained tolerances within .005″
  • Thousands of quotable brush holders and components
  • Holder material options: cast, machined, extruded or TeflonTM coated brass

The Helwig Carbon Advantage:

  • Made in the USA (Milwaukee, WI)
  • Precision fabrication in a devoted production area
  • EDM, CNC and CAM Machining Centers
  • Unmatched technical expertise and superior customer service
  • Fast production, stock parts and quick delivery
  • Ability to accommodate critical break-down situations
  • ISO 9001 Certified
carbon brush holder by Helwig Carbon. Helwig Carbon brush rockers
Made In USA icon and flag
ISO blue logo, certified graphite brush

Constant Force Springs

  • Our pioneering research in the 1980s set the industry standard for spring pressure, from 2 psi to 4-6psi on Industrial DC motors, which eventually led to increased spring pressure for almost all other applications
  • Proper spring pressure ensures better brush contact with the commutator
  • Increased spring force reduces electrical brush wear thus improves brush life and performance
  • Spring life expectancy is 3-5 years on most applications – replacing our springs is easy and safer than traditional springs!

Built-In Wear Indicator

  • Optional brush wear indicator is the industry’s most convenient way to monitor brush wear
  • Red “danger strip” informs you the brush is worn out and should be replaced.
  • Preventative maintenance’s dream accessory

Helwig Quick Disconnects (HQDs)

  • Impressively fast and easy way to change brushes
  • No screws to remove, lose or replace!
  • HQD’s lock together with a tight, positive locking action even under rough conditions
  • Increase maintenance safety
slip ring brush holder
slip ring brush holder90°
slip ring brush holder45°

Learn more about our pioneering constant force spring research from the 1980s

We offer a full line of informational literature to help answer any questions.

See our expert capabilities for motor/generator brushes to pair with our holders

Your brush holder assembly, rebuilt by our experts!

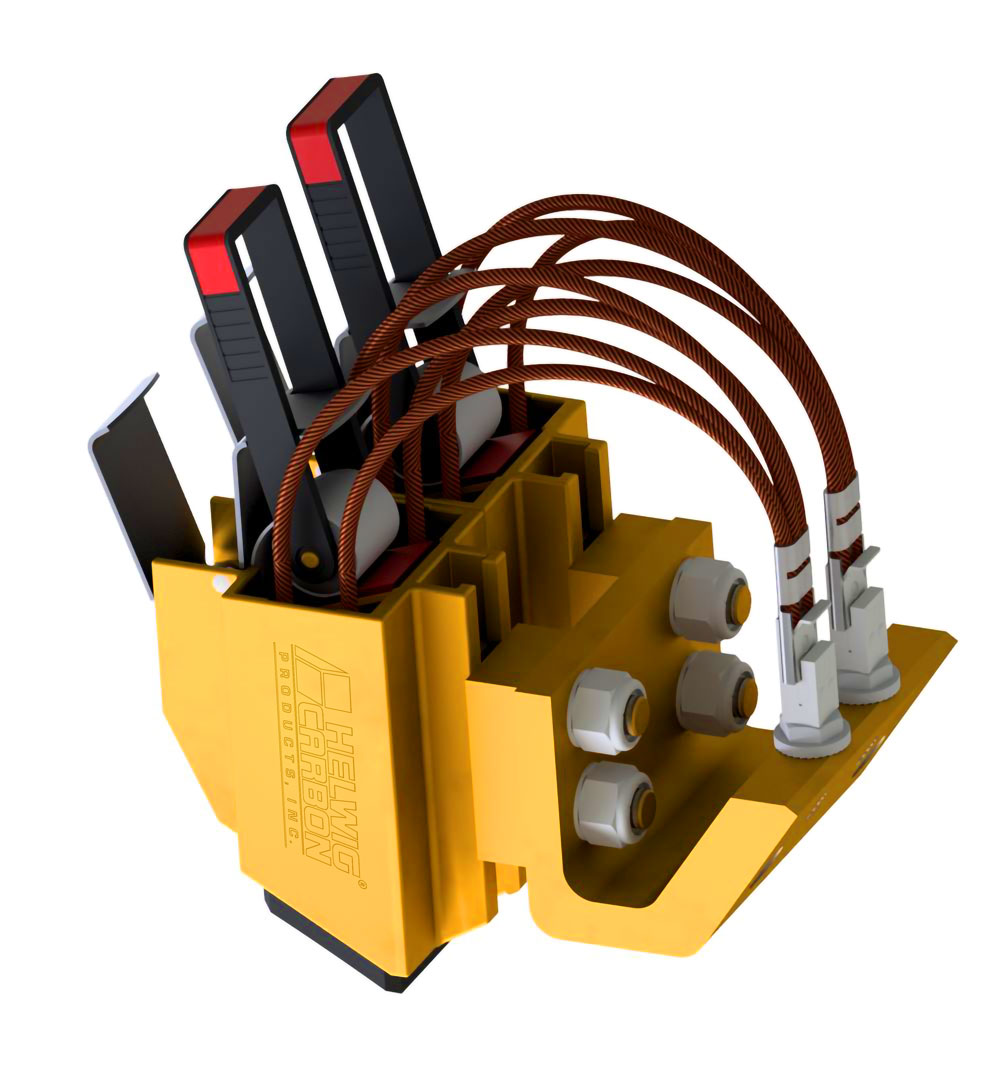

carbon brush holder assembly, electric motor brush holder

Custom Engineered Brush Holder Solutions

return on investment icon, carbon brush holder, slip ring brush holder development and roi icon

Increase performance, decrease downtime costs

save time, carbon brush holder assembly, silver-impregnated carbon graphite brushes

Rush Orders – turnaround time as quick as 48 hours

Industrial Holders

  • Solid construction provides better performance, longer brush life and lower maintenance costs than the original holder
  • Over 40 standard models in stock for GE, Reliance, Westinghouse, etc.
  • Easy to install
  • Constant Force Springs for increased performance out of your brush
  • Custom engineered designs for any applications
one of our industrial holders, that use our slip ring brush holder

Turbine Style Holders

  • Direct retrofit and custom designs for upgrades are available
  • Adjustable mounting bolts to increase installation flexibility for proper height above rings
  • Constant force holder design with Wear Indicators to easy maintenance
  • Replaceable spring clips provide less costly downtime

Adjustable Slip Ring Brush Holders

  • Fully adjustable slip ring brush holder designed to fit a wide array of applications
    • Flexible ring diameters, post diameters, and positions
  • Custom designed holders easily retrofit existing equipment and exceed performance of the original holder
  • Custom designs for wind power holders, wound rotor induction motor and synchronous motor holders
    • Standard holders in stock for GE and Westinghouse power generation
  • Replaces single holder and bank of two designs
  • Constant force spring design
  • Offered in 6 standard box sizes
One of our slip ring brush holders, one of our carbon brush holder assemblies, slip ring brushes

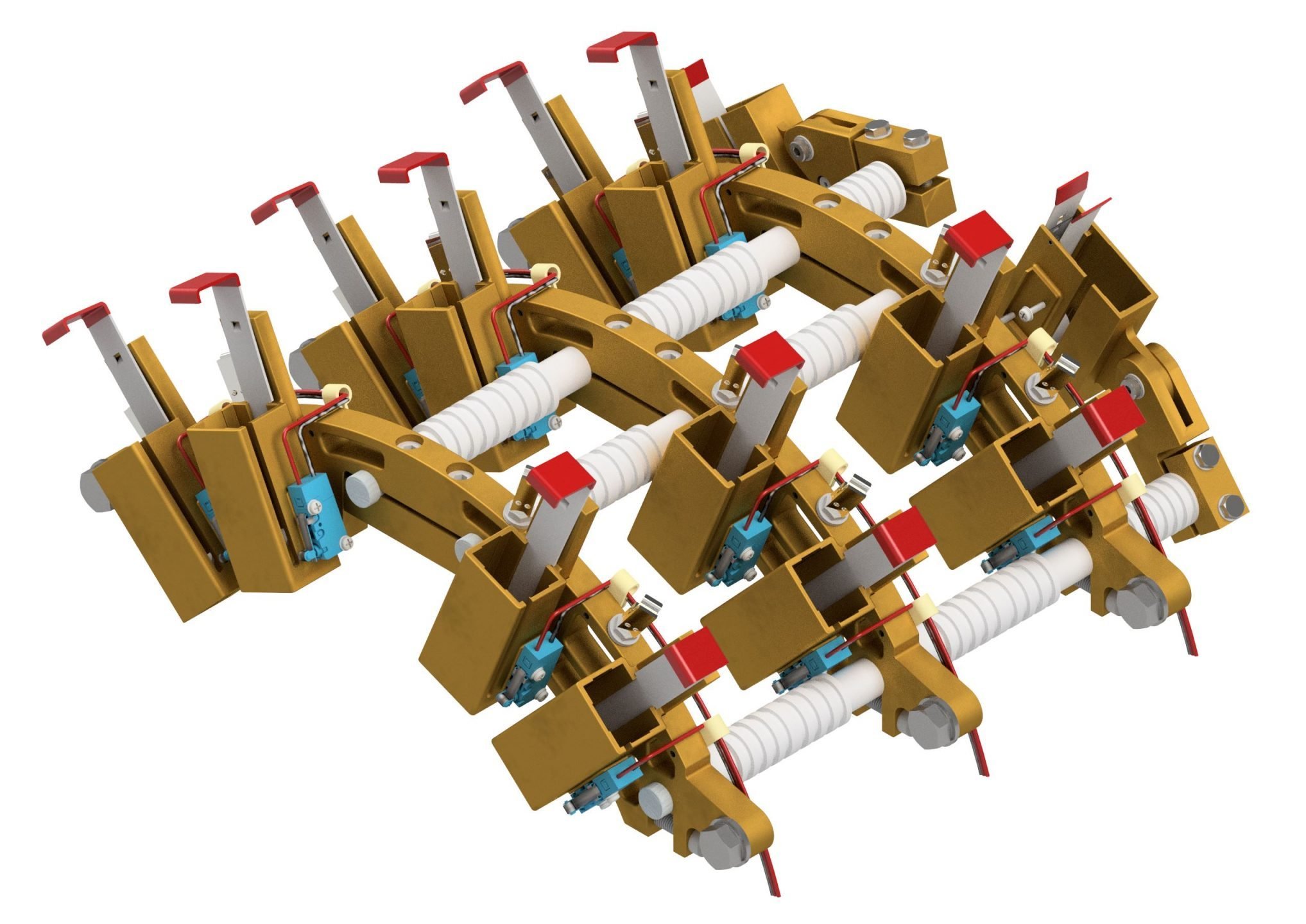

Wind Retrofit Holders

  • Robust design exceeds OEM holder performance
  • Engineered for maximum reliability, easier maintenance, and fewer up-tower repairs
  • Replaceable and adjustable brush boxes
  • Simplified wiring harness
  • Teflon spacers to protect ring phases
  • HQDs for faster brush changes
  • ISO 9001 Certified

BPK™ Holders

  • Durable shaft grounding kit holders, made for even the toughest conditions and tightest of spaces
  • Proprietary silver graphite grade travel smoothly inside the shaft grounding kit holder
  • More effective than the carbon-fiber ring
  • Typically reduces shaft voltage to less than 1V!
  • Easy to install – effective immediately
  • Sealed and Internal Mount options are available
  • Fits multiple shaft sizes
  • Stock kits available for same-day shipping
  • UL Approved – Patented Products

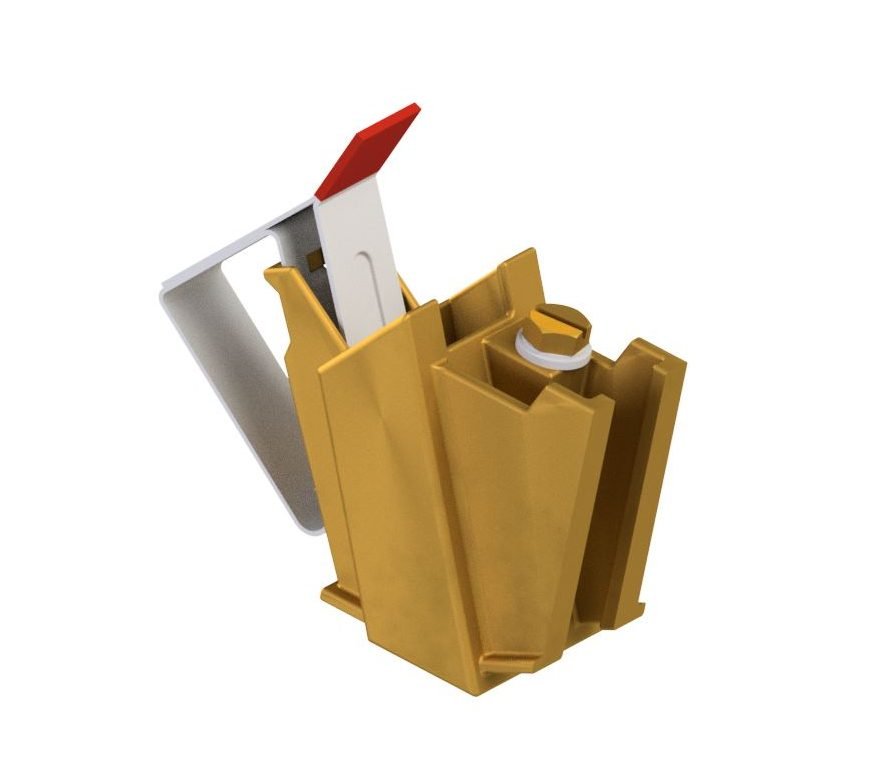

a render of our bpk-4, part of our brush holder assembly

Traction Holders

  • Enhanced replacement for 752 drilling & traction holders
  • Heavy-Duty gunmetal cast for extremely rough mining & traction applications
  • Internally reinforced insulator studs
    • Reduces vibration
    • Minimizes stud breakage
  • Durable clock style spring
    • Includes a stud to hold spring finger for fast and easy brush changes
  • Compatible with Helwig Carbon brush grades: H38, H83, H84, H60

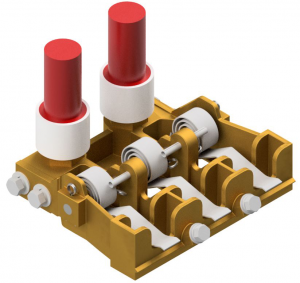

a traction holder, electric motor brush holder

Cast Holders

  • Made from premium brass alloys
  • Best for high volume quantities but can offer smaller quantities if needed
  • A wide range of casted brush boxes are stocked in both imperial and metric sizes
  • Multiple castings for popular industrial motor/generators

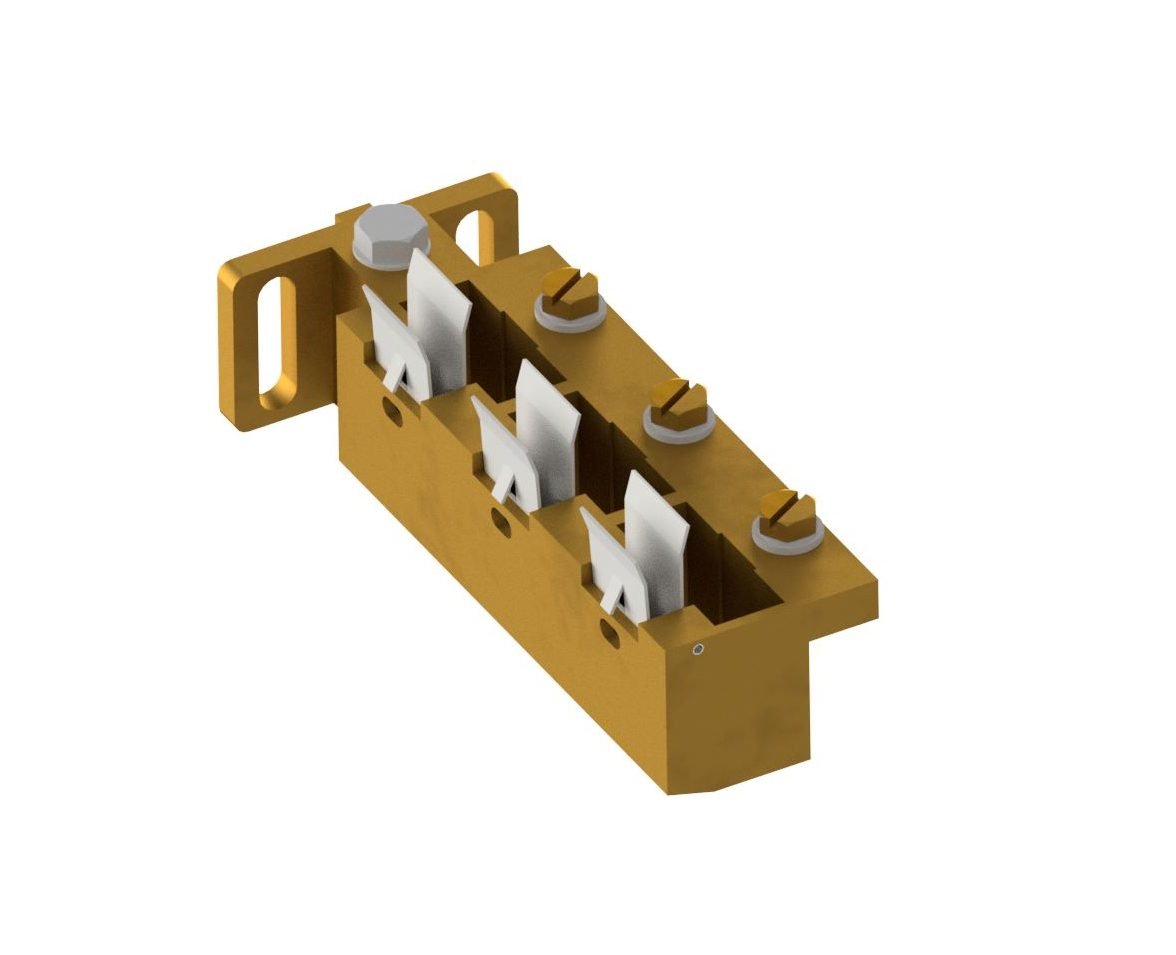

Multiple Box Holders

  • Commonly used on large DC Motors
    • GE, Westinghouse, Siemens, ABB and other mill motors
  • Multiple box holders are engineered with adjustable and replaceable brush boxes
  • Designed with longer brush boxes for increased brush life, lowering maintenance costs
  • Spring Assemblies allow for safer and quicker brush changes

Machined Holders

  • Custom engineered through the latest 3D CAD modeling software
  • Can be designed and manufactured in under 2 weeks for rush situations
  • Ideal for lower quantity orders
  • Precise machining is completed through CNC milling and wire EDM center assuring the brush box is square and accurate

Finger Style Holders

  • Recommended for rough, high-vibration or excessive run-out applications
  • Designed to retrofit existing holders and spring combinations
  • Improved brass holder to withstand extreme environments
  • Engineered for individual holder replacements when needed
  • Able to use your existing brush – same length brush box

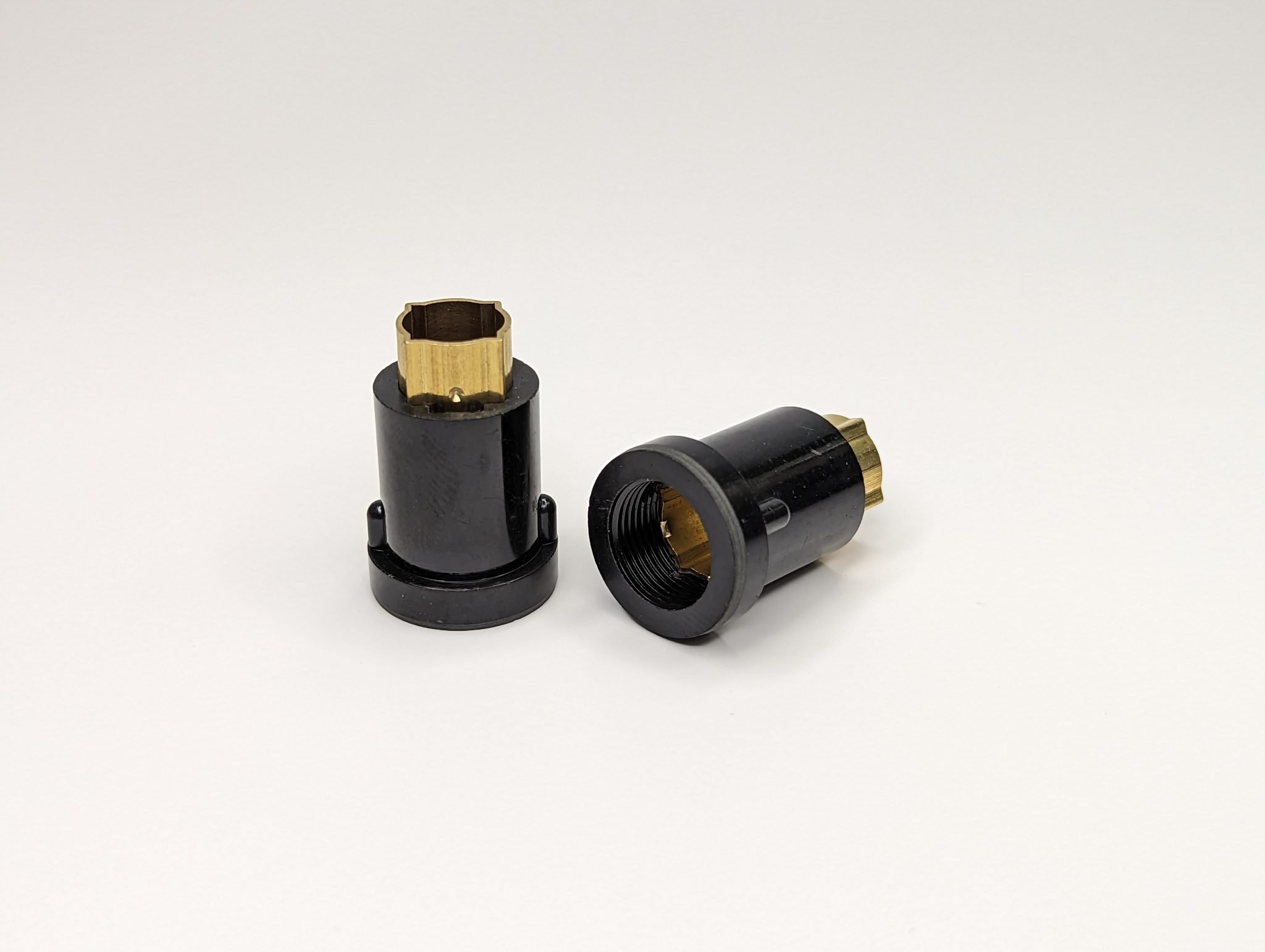

Other Style Holders

  • Helwig can custom engineer any carbon brush holder to your desired specifications
  • For custom engineering projects, please contact us directly at (880) 962-4851 or carboncrew@helwigcarbon.com
custom carbon brush holders are always available with Helwig Carbon
